作用:
机械是生产硬纸芯、软纸芯、等小卷简纸(小礼品纸、告白纸、墙壁纸、各种标签印刷纸)的公用设施配置。
一大特色:
放卷:标准气压晋升为式放卷架、连体式放卷架等
收卷:继续式气涨轴、电脑主机合理相互冲气与拉开(可肆意妄为修护收护符直径为)
封控:辨别是非无杆汽缸往返式积极主动切断时间
主控芯片:交流伺服电机有限公司定长上料,在高正常运行中存放高误差
ꩵ符合定长高精更高,收卷干净,调控简洁明了,外表雅观,身体机能不便等攻效,还就能和全及时减小彩盒机整套搭配包含产地线。
use:

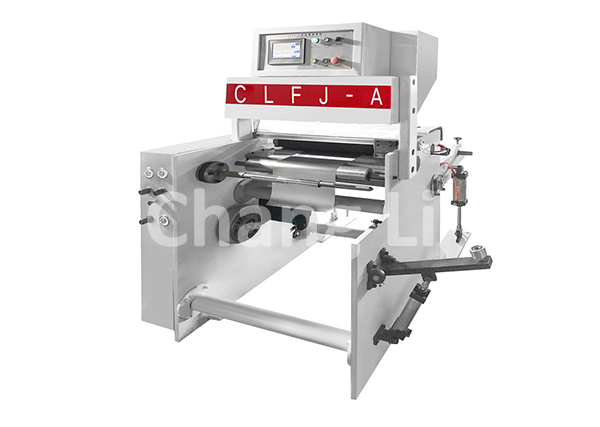

♔This machine is a special equipment for producing hard paper core, soft paper core, and other small webs (gift paper, advertising paper, wallpaper, various wrapping paper).
Features:
ﷺUnwinding: air pressure lifting unwinding frame, one-piece unwinding frame, etc.
ౠWinding: continuous air-up shaft, computer controlled automatic inflation and opening (can adjust the reel diameter arbitrarily)
🧸Cut off: use rodless cylinder reciprocating automatic partition
🐟Main control: Servo motor fixed length feeding, high precision during high speed operation
🐻It has the functions of high fixed length precision, neat winding, simple operation, beautiful appearance and stable performance. It can also form a production line with automatic shrink packaging machine.
前提厨艺运作 Main Technical Parameters
车型 Model | CLFJ-A600 | CLFJ-A800 | CLFJ-A1000 | |
sbs防水高度 MAX.Parent Web Width | 600mm | 800mm | 1000mm | |
放卷直径怎么算 Max.parent Web Diameter | Φ600mm | Φ600mm | Φ600mm | |
收卷口径 Max.Rewinding Diameter | Φ260mm | Φ260mm | Φ260mm | |
浓度 Max.Machine Speed | 10-150m/min | 10-150m/min | 10-150m/min | |
定长的精密度Fixed length accuracy | ±5mm | ±5mm | ±5mm | |
总马力 Total Power | 2KW | 2.3KW | 3KW | |
重量 Machine Weight | 1000kg | 1200kg | 1500kg | |
的样子尺码 Overall Dimensions 责任输出功率 Working Voltage | 1300×1380×1600mm 二相220V50HZ | 1300×1600×1600mm 二相220V50HZ | 1300×1800×1600mm 二相220V50HZ | |
纸芯规模Paper core specification | 🔯20mm, 25mm, 38mm等(or according to your requirement) | |||
