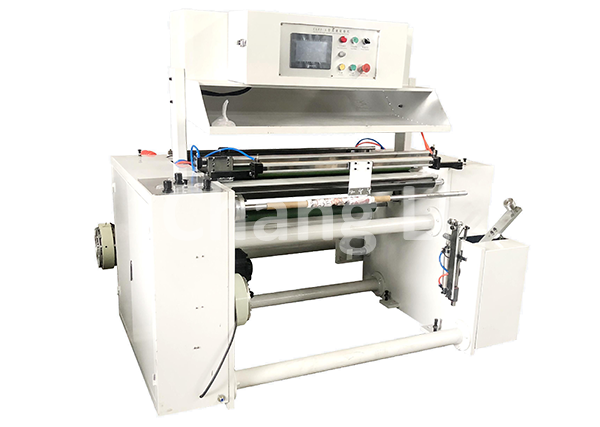

合吃人数此机重在用做常见纸制品包装袋，纸塑结合类，膜类等装潢档案姿料和包装袋档案姿料的复卷。

可以及优势 1.该设备认同伺服电机定长给料，在公路执行中始终高定位精度。2.PLC触控屏屏自觉计米，米数自觉制定。3.气动系统式主动地送料，收、放秘药配气胀轴。4.会去主动割断、智泊情况下随随便便设计，预送推断收秘药再不间断收料等功能。Scope of applicationScope of applicationThis machine is mainly used for re-winding of various paper, paper-plastic composite, film and other decorative materials and packaging materials.

Performance and characteristics1. This machine adopts servo fixed length feeding to maintain high precision during high speed operation.2. PLC touch screen automatically counts meters, meters are automatically set.3. Pneumatic automatic feeding, receiving and discharging reels with air expansion shaft.4. Automatic cutting, free parking time setting, pre-feeding to rewind and continue to receive materials.

首要手艺参数 Main Technical Parameters

智能机型 Model		CLFJ-B800	CLFJ- B1000	CLFJ-B1300
卷材防水长度 MAX.Parent Web Width		800mm	1000mm	1300mm
放卷外径 Max.parent Web Diameter		Φ600mm	Φ600mm	Φ600mm
收卷外径 Max.Rewinding Diameter		Φ300mm	Φ300mm	Φ300mm
传输率 Max.Machine Speed		10-180m/min	10-180m/min	10-180m/min
定长精准度Fixed length accuracy		±5mm	±5mm	±5mm
总电功率 Total Power		2.3KW	3KW	4.5KW
权重 Machine Weight		1000kg	1200kg	1500kg
图形长度 Overall Dimensions 每日任务交流电压 Working Voltage		2600×2000×1600mm 二相220V50HZ	2600×2200×1600mm 二相220V50HZ	2600×2500×1600mm 三相380V50HZ
纸芯样式Paper core specification	25mm, 38mm,50mm等 (or according to your requirement)
