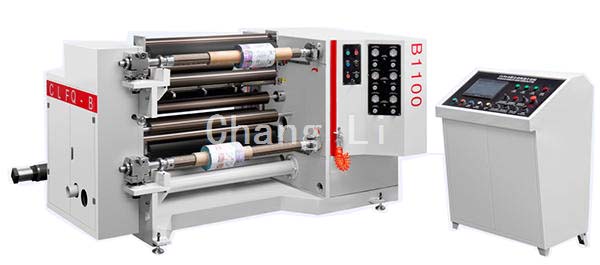

首先需要匠人规格：Main Technical Parameters

机型 Model	CLFQ-B1100	CLFQ-B1300	CLFQ-B1600
质料宽度 MAX.Width of raw material	1100mm	1300mm	1600mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ600mm	Φ600mm	Φ600mm
机器速率 Max.Machine Speed	10-350m/min	10-350m/min	10-350m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	14KW	16KW	19KW
分量 Machine Weight	3800kg	4300kg	4800kg
形状尺寸 Overall Dimensions	2650×2500×1350mm	2650×2750×1350mm	2650×3050×1350mm
分切宽度 Min.Slitting Width	圆刀Round Blade :30mm	直刀Razor Blade :30mm

可依据乙酰乙酸需求 定制装配。

ꦉCan be made according to the product requires special equipment.

声明及自己的特色:

1、该型分切机合适于分切PE、PP、PET,PVC等塑料薄膜，复合膜，

膜，彩色印刷膜、卷简纸等。是塑料膜、薄片两次加工处理和彩色印刷礼品盒企业主的志向车型。2、配件上的加工由PLC数集放肆（三矢量图机械设备）并敞开心扉触控屏组队菜单栏对配件上的加工进行数集操作。3、放卷悦纳自己手动脚刹盘式制动器器，由PLC相互较真卷径来完成相互拉力吃妻上瘾。4、牵引器有吃妻上瘾由一个矢量素材定频机电工程驱动软件，成功完成恒线强度有吃妻上瘾，并隔开相距收放卷涨力之中的我们之间的影响。5、收魔石辨别是非气涨轴收卷由二台矢量图变频柜有限公司自力驱程，收卷弹性规范，决定收卷长度，分割薄厚，调节弹性等参数表，由PLC运算进行自主的弹性增加。（可供选择滑差气涨轴轴）6、收魔石辊子聚散包容气动弹簧组装，负压谦冲它是经过了阶段调压阀规范。7、放卷卸货料悦纳自己气涨轴卸货料，液压伸缩，料卷液压落杆，卸货料社区便利店、法律效力高。8、放卷EPC纠编转配可精确性放肆外圆计算精度。9、模切采纳圆刀直刀模切装配图，铣面卫生，有边危化物风送。10、零件图由同部带、同部轮为传送体例，遵守与伸缩敞开心扉气动式体例11、牵引带导辊：静均衡教育铝镁合金材料导辊，内心软化剂正确处理 12、体制具备条件重新启动缓解、停车防松、计米定长，定速、卷径运算均分切作用与功效。13、标准掌握完全的机、电、气三合一化总体目标，并尊重完整性的或许防护小妙招。

Description and characteristics:

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

🗹Film, color film. It is the ideal model for film and sheet secondary processing and color printing packaging enterprises.

❀2. The whole machine is controlled by PLC (three vector motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole machine.

ℱ3. The unwinding adopts the start brake brake, and the automatic calculation of the coil diameter is realized by the PLC.

꧅4. The traction control is driven by a vector variable frequency motor to achieve constant line speed control and effectively interrupt the interaction between the tension of the rewinding and unwinding.

💖5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）

⛎6. The take-up reel is clutched with a pneumatic device, and the pressure is controlled by a pressure regulating valve.

🔥7. The unwinding loading and unloading material adopts the gas-up shaft loading and unloading material, pneumatic locking, pneumatic lifting of the material roll, convenient loading and unloading, and high efficiency.

ꦏ8. The unwinding EPC correction device can accurately control the end face precision.

💞9. The cutting machine adopts a round knife straight knife slitting device, the end surface is neat, and there is a side scrap air supply.

⛄10. The whole machine is driven by synchronous belt and synchronous wheel, and pneumatically operated by locking and locking.

♛11. Traction guide roller: static balance aluminum alloy guide roller, surface hardening treatment

⭕12. The system has the functions of starting buffering, parking anti-loose, metering length, constant speed, and coil diameter calculation.

🐲13. The system has a complete integrated design of machine, electricity and gas, and adopts complete safety protection measures.
