首选手艺活参数指标Main Technical Parameters：

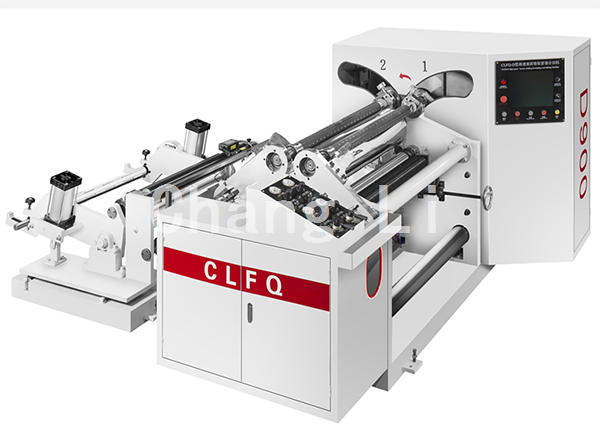

机型 Model	CLFQ-D900	CLFQ-D1100	CLFQ-D1300
质料宽度 MAX.Width of raw material	850mm	1050mm	1250mm
放卷直径 Max.parent Web Diameter	Φ1000mm	Φ1000mm	Φ1000mm
收卷直径 Max.Rewinding Diameter	Φ680mm	Φ680mm	Φ68mm
机器速率 Max.Machine Speed	10-350m/min	10-350m/min	10-350m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	14KW	16KW	19KW
分量 Machine Weight	3800kg	4300kg	4800kg
形状尺寸 Overall Dimensions	3500×2500×1450mm	3500×2700×1450mm	3500×2900×1450mm
分切宽度 Min.Slitting Width	圆刀Round Blade :3mm	直刀Razor Blade :3mm

混用占比本身卷取复卷模切机共用于卷桶纸、朔胶片、铝铂、PVC、塑料制品膜、隔绝文件等外包装文件的分条复卷是对文件止住藐小要求模切的实现武器。

机能及特色

1.放卷主动权性光电材料纠偏、容忍有轴汽动系统装料，磁粉驻车制动或（汽动系统刹车踏板）主动权性支撑力吃妻上瘾。2.收卷由两部失量机械设备带动与主机系统对接合理中卷取与内心战斗或用，双轴结合在一起收卷。3.主机结构传动系统由交流交流变频器这一物件控制，交流交流变频有限公司推动，加加快没变迅速。

4..并设有预置主动计米，计较卷径，报警停机等功效。

5.接纳圆刀直刀纵切，分切盘面整洁，废边主动解除。

6.零件图由PLC手触屏人机对战网页自主支撑力控制。

Scope of application

💞The surface coiling and rewinding slitting machine is suitable for the stripping and rewinding of packaging materials such as web, plastic sheet, aluminum foil, PVC, plastic film and insulating material. It is an ideal equipment for fine-cutting materials.

Performance and characteristics

♕1. Unwinding automatic photoelectric correction, using shaft pneumatic feeding, magnetic powder brake or (pneumatic brake) automatic tension control.

♍2. The winding is driven by two vector motors and the main engine linkage control center is used for winding and surface contact, and the two-axis cross winding is performed, never biting.

🔯3. The main drive is controlled by the inverter, driven by the variable frequency motor, and the acceleration and deceleration is stable and fast.

4. There are preset automatic meter counting, calculation of coil diameter, alarm shutdown and other functions.

ꦛ5. Longitudinal cutting with a round knife, the cutting surface is neat, and the waste edge is automatically eliminated.

🐠6. The whole machine is controlled by the automatic tension of the PLC touch screen man-machine interface.
