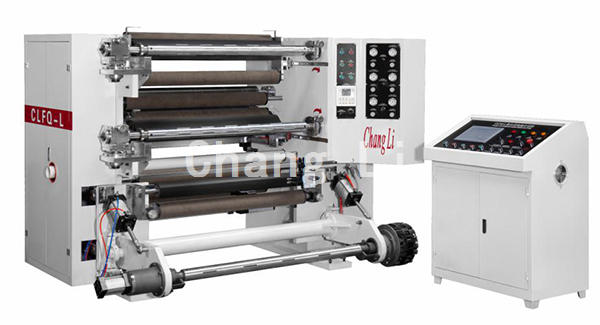

前提一技之长参数表：Main Technical Parameters

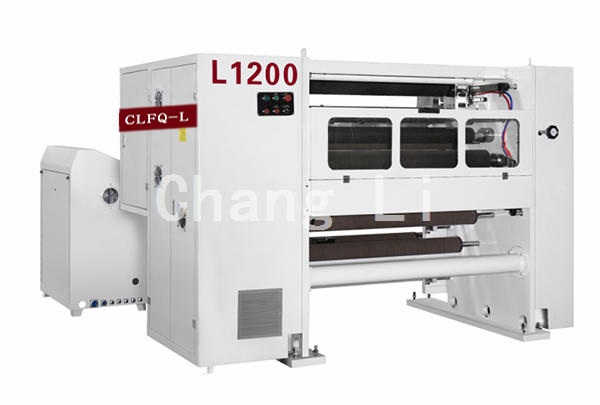

机型 Model	CLFQ-L1200
质料宽度 MAX.Width of raw material	1150mm
放卷直径 Max.parent Web Diameter	Φ700mm
收卷直径 Max.Rewinding Diameter	Φ500mm
机器速率 Max.Machine Speed	400m/min
资料厚度 Edge adjusting accuracy	0.012-0.2mm
纠偏精度 Total Power	±0.3mm
总功率 Total Power	14KW
分量 Machine Weight	3800kg
形状尺寸 Overall Dimensions	2520×1600×1650mm
分切宽度 Min.Slitting Width	30mm

表明及标志性:1、该型模切机适合使用于模切PE、PP、PET,PVC等pp塑料软型膜，软型膜， 膜，彩色印刷膜。是薄膜和珍珠棉、薄片多次加工生产和彩色印刷包装袋工厂的合适型号规格。2、铸件由PLC汇合控制（三失量电气）并进行手触屏人机对战介面对铸件停掉汇合控制。3、放卷悦纳自己开机制动踏板制动踏板器，由PLC被动斤斤计较卷径完毕被动涨力控制。4、带领放肆由一套失量变频式电气自动化驱动软件，搞定恒线数率放肆，并有xiao地切断间距收放卷涨力期间的你我引响。5、收护符采纳气涨轴收卷由二台矢量素材交流变频电气自动化自力驱动软件，收卷涨力规范，通过收卷网套直径，分割板厚，制定涨力等参数值，由PLC运算完毕主动地涨力递加。（待选滑差气涨轴）6、收秘药辊子聚散辨别是非油路分配器自动装配，压力值风疹病毒阳性所经方式调压阀吃妻上瘾，（辊子辨别是非平推式）。7、放卷装车料包容气涨轴装车料，液压伸缩，料卷液压起伏，装车料连锁便利店、法律效力高。8、放卷EPC纠编装配工艺套装搭配CCD影象调节器器，可正确控制横截可靠性强，精密度。9、模切机机容忍直刀模切机机自动加装，端口整齐，有边有害垃圾风送。（原纸需选购圆刀模切机机自动加装）10、配件上的由同样带、同样轮为传动齿轮体例，履行义务与卡紧敞开心扉汽动体例11、带动导辊：静稳定铝耐热合金导辊，内心溶解代理 12、指标体系必备起动抗震、智能停车防松、计米定长，定速、卷径运算评分切功能。13、装修标准遵循好看的机、电、气一体机化思路，并接收完整性的或许防护最好的办法。

Description and characteristics:

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

🧸Film, color film. It is the ideal model for film and sheet secondary processing and color printing packaging enterprises.

🦩2. The whole machine is controlled by PLC (three vector motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole machine.

♏3. The unwinding adopts the start brake brake, and the automatic calculation of the coil diameter is realized by the PLC.

♔4. The traction control is driven by a vector variable frequency motor to achieve constant line speed control and effectively interrupt the interaction between the tension of the rewinding and unwinding.

ꦛ5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）6. The take-up reel is clutched with a pneumatic device, and the pressure is controlled by a pressure regulating valve. (The pressure roller is of flat push type).

🌟7. The unwinding loading and unloading material adopts the gas-up shaft loading and unloading material, pneumatic locking, pneumatic lifting of the material roll, convenient loading and unloading, and high efficiency.

🐓8.The unwinding EPC correction device is equipped with a CCD image sensor to accurately control the end face accuracy.

🌠9. The slitting adopts the straight knife slitting device, the end face is neat, and the side scrap is sent by wind. (Paper needs to purchase round knife slitting device)

💙10. The whole machine is driven by synchronous belt and synchronous wheel, and pneumatically operated by locking and locking.

﷽11. Traction guide roller: static balance aluminum alloy guide roller, surface hardening treatment

🌃12. The system has the functions of starting buffering, parking anti-loose, metering length, constant speed, and coil diameter calculation.

🍷13. The system has a complete integrated design of machine, electricity and gas, and adopts complete safety protection measures.
